How to Choose a Load Bank for a Generator?

Choosing a load bank for generator testing is a practical reliability decision, not a simple purchasing exercise. The wrong unit can hide voltage instability, overheating, or poor fuel-system performance. It is not a showroom decision. Field conditions matter.

Uptime Institute’s Global Data Center Survey consistently identifies power problems among the leading causes of serious data-center outages. Its recent reports indicate that more than half of surveyed organizations experienced an outage within a three-year period. The U.S. Energy Information Administration also documents continuing reliability challenges across commercial power systems. These findings explain why standby generators require controlled, measurable testing rather than occasional no-load starts. A generator may sound healthy while its engine remains dangerously underloaded.

The right selection depends on several visible details. Consider generator capacity, voltage, phase configuration, frequency, connection type, test duration, and installation environment. Resistive banks verify real-power output. Reactive or combined banks can examine power-factor behavior and alternator performance. Cooling airflow matters too. A hot warehouse and a coastal site create different operating risks. NFPA 110 and ISO 8528 provide useful benchmarks for emergency power systems and generator performance, but site requirements still need professional review. Standards guide the decision. They do not replace it.

This guide explains how to compare ratings, safety features, controls, transport options, and maintenance needs. It also addresses a common mistake: selecting a load bank only by matching kilowatts. That shortcut can fail. A properly specified unit should produce clear test records, stable readings, and actionable evidence. The final choice should reflect both documented standards and the generator’s actual working environment.

Table of Contents [Hide]

1 Define the Generator Load Profile: kW, kVA, and the 0.8 Power Factor

2 Select the Load-Bank Type: Resistive, Reactive, or Combined Operation

3 Size Capacity and Steps: Test 25%, 50%, 75%, and 100% Rated Load

4 Check Testing Standards: NFPA 110 Exercise Runs and ISO 8528 Ratings

5 Verify Safety Requirements: IEEE 446 Guidance, Cooling, and Clearances

Define the Generator Load Profile: kW, kVA, and the 0.8 Power Factor

Before choosing a load bank, define the generator’s real load profile. Record both kW and kVA during startup, normal operation, and peak demand. Kilowatts describe useful power. Kilovolt-amperes describe the electrical capacity the generator must deliver. The relationship is simple: kVA = kW ÷ power factor. An 800 kW load at a 0.8 power factor requires 1,000 kVA. That difference is not theoretical. It affects alternator current, cable sizing, voltage stability, and load-bank selection.

ISO 8528-1 commonly evaluates generator sets at 0.8 lagging power factor. This industry reference explains why many generator ratings use that value. IEEE guidance on power-system testing also stresses testing under realistic operating conditions, not only resistive loads. A resistive load bank may show 800 kW, but it may not reproduce motors, transformers, or uninterruptible power supplies. Those loads can demand reactive power and create a lower power factor. At 480 volts, a 1,000 kVA three-phase load draws about 1,203 amperes. The current rises when power factor falls.

Check the site measurements carefully. A neat spreadsheet can still be wrong. Capture harmonic-producing equipment, motor starts, and sudden load steps. Use the lowest credible power factor, not an optimistic average. A practical test may combine resistive and reactive sections, allowing the bank to reproduce the generator’s expected kW, kVA, and 0.8 power factor. The Uptime Institute’s data-center reliability research repeatedly highlights electrical-system testing as a critical operational practice. That evidence supports a cautious approach, especially when the generator will protect sensitive or continuous loads.

Select the Load-Bank Type: Resistive, Reactive, or Combined Operation

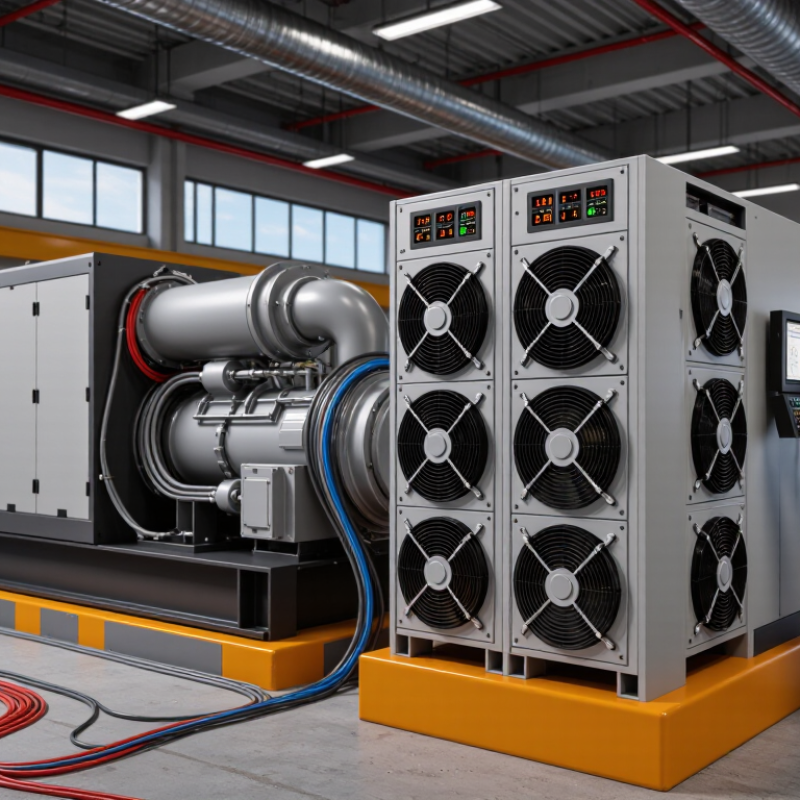

How to Choose a Load Bank for a Generator?

Selecting the load-bank type starts with the generator’s real duty, not only its nameplate rating. A resistive load bank applies electrical resistance and mainly tests engine output, fuel response, cooling, and basic voltage stability. It is practical for routine commissioning and periodic maintenance. However, it does not fully represent motors, transformers, or pumps.

That assumption can be wrong. A generator may pass a resistive test while struggling when motor loads start.

Reactive load banks add inductive or capacitive effects, creating a measurable power factor. They test the alternator, excitation system, voltage regulation, and generator response under conditions closer to heavy industrial equipment.

Combined load banks apply resistive and reactive loads together. This arrangement can reproduce both kilowatt and kilovolt-ampere demand, such as a pump starting beside lighting and control systems.

Use it when the generator supports hospitals, data rooms, manufacturing lines, or other mixed loads.

Check voltage, phase, frequency, connection method, load steps, and cooling requirements before ordering. Smaller steps provide better control during commissioning. Outdoor testing also requires attention to airflow, noise, weather protection, and exhaust clearance.

In field practice, technicians sometimes choose resistive testing because it costs less and is easier to transport. I understand that choice, but it can leave important performance questions unanswered. Reviewing actual load profiles before testing usually produces a more reliable selection.

Size Capacity and Steps: Test 25%, 50%, 75%, and 100% Rated Load

Choosing a Load Bank for a Generator

Selecting a load bank starts with the generator’s rated output. Check both kilowatts and kilovolt-amperes before choosing capacity. A resistive load bank suits many standard generator tests, while reactive loading may be needed for inductive equipment. The load bank should handle the generator’s full rated load without operating continuously at its limit. Leave a sensible margin for temperature, altitude, and future testing needs. Confirm the voltage, phase, frequency, connection method, and power factor. Small details matter.

Test under controlled conditions. Warm the generator and stabilize its oil pressure, coolant temperature, voltage, and frequency. Apply 25% of the rated load and record readings after the system settles. Increase to 50%, then 75%, and finally 100%. Hold each stage long enough to reveal unstable frequency, voltage drop, overheating, or abnormal exhaust smoke. Keep an accurate test log. Include ambient temperature, load current, fuel use, and alarm activity. At full load, inspect cables and terminals for heat. Maintain clear airflow around the load bank.

A first test is rarely perfect. Uneven phase loading can distort results. Operators sometimes record only power output and miss rising coolant temperature. That is a mistake worth correcting. After the 100% test, remove the load gradually and allow the generator to cool at no load. Review every reading against the generator’s technical limits. Recheck questionable results rather than forcing a clean-looking report. Safety controls, trained personnel, and reliable measuring instruments remain essential throughout the test.

How to Choose a Load Bank for a Generator? - Size Capacity and Steps: Test 25%, 50%, 75%, and 100% Rated Load

Generator Rated Output	Typical Rated Power Factor	25% Load Test	50% Load Test	75% Load Test	100% Load Test	Suggested Minimum Load Bank Rating	Recommended Test Sequence	Primary Selection Consideration
100 kW	0.8	25 kW	50 kW	75 kW	100 kW	110 kW or higher	25% → 50% → 75% → 100%	Confirm the load bank can accept the generator's rated voltage and frequency.
250 kW	0.8	62.5 kW	125 kW	187.5 kW	250 kW	275 kW or higher	25% → 50% → 75% → 100%	Check connection method, cable capacity, ventilation, and available space.
500 kW	0.8	125 kW	250 kW	375 kW	500 kW	550 kW or higher	25% → 50% → 75% → 100%	Verify the load bank's continuous rating and heat discharge requirements.
750 kW	0.8	187.5 kW	375 kW	562.5 kW	750 kW	825 kW or higher	25% → 50% → 75% → 100%	Confirm the load bank is suitable for the generator's phase configuration.
1,000 kW	0.8	250 kW	500 kW	750 kW	1,000 kW	1,100 kW or higher	25% → 50% → 75% → 100%	Assess transport, parallel operation, remote control, and site safety requirements.

Selection and testing notes: Calculate each test step as generator rated kW × the selected load percentage. A load bank rated at approximately 110% of the generator output provides practical operating margin, but the available rating should never be below the required 100% test load. The table represents a resistive load-bank test in kW. A resistive load bank does not fully evaluate alternator performance at lagging power factor; use a reactive or combined load bank when testing kVA, excitation, voltage regulation, or power-factor performance. During testing, monitor voltage, frequency, current, coolant temperature, oil pressure, exhaust condition, and alarms at every step.

Check Testing Standards: NFPA 110 Exercise Runs and ISO 8528 Ratings

How to Choose a Load Bank for a Generator?

A load bank should match the generator’s real testing conditions, not only its nameplate capacity. NFPA 110 requires periodic exercise of emergency power systems, but the exact schedule depends on the adopted edition and local authority requirements. Confirm those details before planning a test.

Testing should exercise the generator under a meaningful load. A resistive load bank can verify engine output and basic voltage stability. However, many facilities also need reactive loading to examine alternator performance at a practical power factor. Check the generator’s voltage, phase, frequency, kW, kVA, and connection method before selecting equipment. Small mismatches can create large testing problems.

ISO 8528 ratings also deserve close attention. Prime power, continuous power, and emergency standby power describe different operating conditions. A load bank must support the rating being verified, including its permitted duration and duty cycle. Do not test a standby-rated generator as though it were a continuous-duty machine. That assumption can distort results and increase thermal stress.

Field conditions matter too. Measure cable length, ventilation, noise limits, and available test space. Confirm that the load bank can apply load in controlled steps, such as 25, 50, 75, and 100 percent. Some older facilities lack suitable connections. That detail is easy to overlook. Test records should include ambient temperature, fuel condition, voltage, frequency, power factor, and observed alarms. Review the results critically; a passing test does not always prove reliable performance during a real outage.

Verify Safety Requirements: IEEE 446 Guidance, Cooling, and Clearances

Choosing a load bank for a generator starts with its safety requirements, not only its rated kilowatts. Use IEEE 446 guidance as a practical reference for emergency and standby power systems. It helps evaluate safe operation, testing procedures, ventilation, and system reliability. Confirm the current edition, then compare its recommendations with the generator manual and local electrical codes. IEEE 446 is valuable guidance, but it does not replace site-specific engineering or approval from a qualified professional.

Cooling deserves close attention. A load bank can release intense heat within minutes, especially during a full-load test. Install it where exhaust air cannot return toward the generator, fuel system, building openings, or control panels. Check airflow direction, fan capacity, ambient temperature, and altitude derating. Heat moves fast. Keep combustible materials away from discharge areas, and monitor surface temperatures during testing. A temporary test location may look open but still trap hot air against a wall.

Clearances should follow the load bank and generator manufacturers’ documented requirements. Never estimate distance by appearance. Leave access for inspection, emergency shutdown, cable routing, and fire response. Confirm that cables are protected from vehicle traffic, sharp edges, water, and excessive heat. I have seen well-planned tests overlook a nearby doorway or fresh-air intake. That mistake can affect people inside the building. Do not guess. Record measurements, weather conditions, alarms, and abnormal observations before selecting the final load bank configuration.
